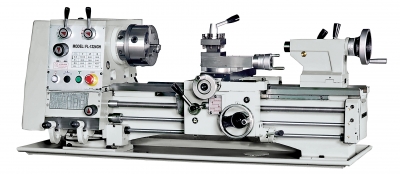

lathe

MODEL

FL-1236GH

FL-1324GH

FL-1336GH

FL-1340GH

NOMINAL SIZE

Swing over bed

305mm (12”)

330mm (13”)

Swing over cross slide

166mm (6-9/16”)

190mm (7-1/2”)

Swing in gap

461mm (18-1/8”)

486mm (19-1/8”)

Gap length in front of
face plate

122mm (4-3/4”)

Distance between centers

406mm (16”)

609mm (24”)

915mm (36”)

609mm (24”)

915mm (36”)

1000mm (40”)

SPINDLE

Hole through spindle

40mm (1-9/16”)

Taper of spindle bore

M.T.No.5

Taper of center

M.T.No.3

No. & range of spindle
speeds

12 Nos. 70-1400 r.p.m.

Spindle nose

D1-4

THREADS & FEEDS

Dia. & pitches of lead
screw

22mmx4mm (Metric) or 7/8x8 T.P.I. (Inch)

Number of threads for
Metric lead screw

24(Metric), 39 (Inch)

Range of pitches for
Metric lead screw

0.25-7mm (Metric), 3 1/2-104 T.P.I. (Inch)

Number of threads for
Inch lead screw

24 (Metric), 40 (Inch)

Range of threads for
Inch lead screw

0.25-7.5mm (Metric), 4-112 T.P.I. (Inch)

TOOL SLIDE

Cross slide travel

170mm (6-3/4”)

Compound rest travel

90mm (3-1/2”)

Max. size cutting tool

16mmx16mm (5/8”x5/8”)

TAILSTOCK

Dia. & travel of quill

Ø40mm (1-9/16”) & 100mm (4”)

Taper of quill

M.T. No. 3

BED

Width of bed

190mm (7-1/2”)

MACHINE

Floor space
(L x W x H)

1140x635 x584 mm
(44-7/8”x25” x23”)

1290x635 x584 mm
(50-3/4”x25” x23”)

1670x635 x584 mm
(65-3/4”x25” x23”)

1290x635 x597mm
(50-3/4”x25” x23-1/2”)

1670x635 x597 mm
(65-3/4”x25 ”x23-1/2”)

1770x635 x597 mm
(69-11/16”x25” x23-1/2”)

260kgs

280kgs

310kgs

280kgs

310kgs

320kgs

MOTOR

Motor

1 1/2HP

PACKING

Packing size
(L x W x H)

1270x750 x750mm
(50”x30” x30”)

1420x750 x750mm
(56”x30” x30”)

1780x750 x750mm
(70”x30” x30”)

1420x750 x750mm
(56”x30” x30”)

1780x750 x750mm
(70”x30”x30”)

1855x750 x750mm
(79”x30” x30”)

Gross weight

310kgs

330kgs

370kgs

330kgs

370kgs

380kgs
