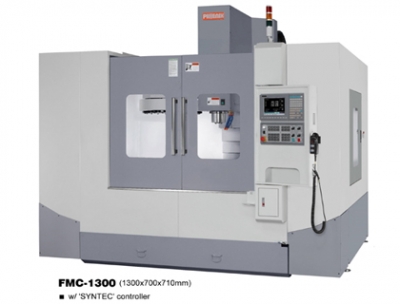

FMC-1100 /1300 / 1104G / 1105G / 1304G / 1305G


分享到：

MODEL

FMC-1100 /
FMC-1104G

FMC-1105G

FMC-1300 /
FMC-1304G

FMC-1305G

TABLE

Working surface

1300 x 650mm
(51-3/16" x 25-9/16")

1500 x 650mm
(59" x 25-9/16")

T-slots
(size x number x pitch)

18mm x 5 x 100mm
(0.708" x 5 x 3.937")

Max. table load

1000kgs (2205 lbs)

TRAVEL

Longitudinal travel
(X axis)

1100mm (43-3/8")

 1300mm (51-3/16")

Cross travel (Y axis)

700mm (27-9/16")

Vertical travel (Z axis)

 610mm (24") 710mm (27-15/16")
Guide ways
(X / Y / Z axes)		 2 / 4 / 2 ways 2 / 4 / 2 ways

Distance from spindle
end to table

 130~740mm(5-1/8"~29-1/8") 130~840mm(5-1/8"~33")

Distance from spindle
center to column

 730mm (28-3/4")

SPINDLE

Spindle nose taper

BT-40
(or CAT40 / DIN40, opt.)

BT-50
(or CAT50 / DIN50, opt.)

BT-40
(or CAT40 / DIN40, opt.)

BT-50
(or CAT50 / DIN50, opt.)

Spindle speeds

8000 r.p.m.
(or 10000~15000 r.p.m., opt.)
(for FMC-1100)

6000 r.p.m.

8000 r.p.m.
(or 10000~15000 r.p.m., opt.)
(for FMC-1300)

6000 r.p.m.

Transmission

belt /
H / L gear

 H / L gear

belt /
H / L gear

 H / L gear

FEED

Cutting feed rate
(X, Y, Z axes)

1~10000 mm/min. (max.)

Rapid traverse
(X, Y axes)

24 m/min. (max.)

Rapid traverse
(Z axis)

15 m/min. (max.)

ATC

Tool storage capacity

20 pcs (carrousel)
(or 24 pcs (arm), opt.)

24 pcs (arm)

20 pcs (carrousel)
(or 24 pcs (arm), opt.)

24 pcs (arm)

Max. tool weight

6 kgs (13.23 lbs)

15 kgs (33.07 lbs)

6 kgs (13.23 lbs)

15 kgs (33.07 lbs)

Max. tool size
(dia. x length)

100mmx300mm
(3-15/16"x11-13/16")

125mm x 300mm
(4-15/16"x11-13/16")

100mmx300mm
(3-15/16"x11-13/16")

125mm x 300mm
(4-15/16"x11-13/16")

Tool selection

Random

Tool shank

BT-40

BT-50

BT-40

BT-50

Pull stud bolt

MAS-P40T-1

MAS-P50T-1

MAS-P40T-1

MAS-P50T-1

MOTOR
Spindle motor
(AC servo)

7.5 / 11KW

11 / 15 KW

7.5 / 11KW

11 / 15 KW

X, Y, Z axes motor
(AC servo)

3.5 KW

Coolant pump motor

3/4HP

DIMENSION

Machine size

3200x2825x3080 mm
(126"x111-3/16"x121-1/4")

 3200x2825x3080mm
 (126"x111-3/16"x121-1/4")

Machine weight

9000kgs (19841 lbs) /
9400kgs (20723 lbs)		 9500kgs (20943 lbs) 9200kgs (20281 lbs) /
9600kgs (21163 lbs)		 9700kgs (21384 lbs)
  • The manufacturer reserves the right to modify the design, specifications, mechanisms…etc. to improve the performance of the machine without prior notice. All the specifications shown above are just for reference.
