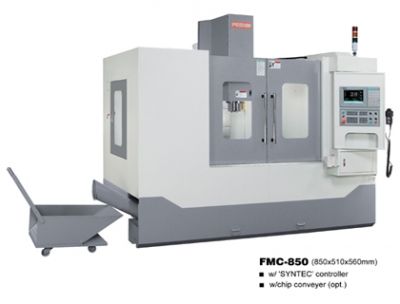

Machining Center (Box ways) (w/ Gear Head)

MODEL

FMC-850 /
FMC-850G

FMC-1000 /
FMC-1000G

TABLE

Working surface

1000 x 500mm
(39-3/8"x19-11/16")

1200 x 500mm
(47-3/16"x19-11/16")

T-slots (size x number x pitch)

18mm x 5 x 100mm
(0.708" x 5 x 3.937")

Max. table load

750 kgs (1653 lbs)

Longitudinal travel (X axis)

850mm (33-7/16")

1020mm (40-1/8")

Cross travel (Y axis)

510mm (20")

Vertical travel (Z axis)

560mm (22")

2 / 2 / 2 ways

Distance from spindle end to table

140~700mm
(5-1/2"~27-9/16")

Distance from spindle center to
column

575mm
(22-5/8")

SPINDLE

Spindle nose taper

BT40
(or CAT40 / DIN40, opt.)

Spindle speeds

8000 r.p.m.
(or 10000~15000 r.p.m., opt.)
(for FMC-850 / 1000)

Cutting feed rate (X, Y, Z axes)

1~10000 mm/min. (max.)

Rapid traverse (X, Y axes)

24 m/min. (max.)

Rapid traverse (Z axis)

16 m/min. (max.)

ATC

Tool storage capacity

16 pcs (carrousel)
(or 20pcs(carrousel) / 24 pcs (arm), opt.)

Max. tool weight

6 kgs (13.23 lbs)

Max. tool size (dia. x length)

100mmx300mm
(3-15/16"x11-13/16")

Tool selection

Random

Tool shank

BT-40

Pull stud bolt

MAS-P40T-1

MOTOR

5.5 / 7.5KW (for FMC-850 / 1000) /
7.5 / 11 KW (for FMC-850G / 1000G)

X, Y, Z axes motor (AC servo)

2 KW

Coolant pump motor

3/4HP

DIMENSION

Machine size

2900x2420x2850mm
(114-3/16"x95-1/4"x112-3/16")

2900x2420x2850mm
(114-3/16"x95-1/4"x112-3/16")

Machine weight

5000 kgs (11023 lbs) /
5300 kgs (11684 lbs)

5200 kgs (11463 lbs) /
5500 kgs (12125 lbs)
