Machining Center (Box ways) (w/ Gear Head)

MODEL

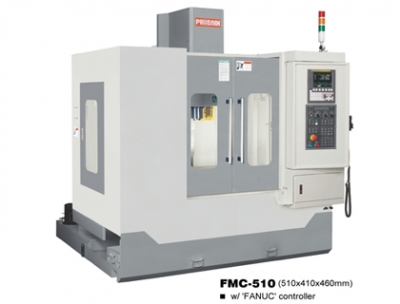

FMC-510

FMC-610

TABLE

Working surface

600 x 370mm
(23-5/8"x14-9/16")

800 x 450mm
(31-1/2"x17-11/16")

T-slots (size x number x pitch)

14mmx3x100mm
(0.551" x 3 x 3.937")

18mmx3x100mm
(0.708" x 3 x 3.937")

Max. table load

300 kgs (661 lbs)

400 kgs (882 lbs)

Longitudinal travel (X axis)

510mm (20")

610mm (24")

Cross travel (Y axis)

410mm (16-1/8")

460mm (18-1/8")

Vertical travel (Z axis)

460mm (18-1/8")

510mm (20")

2 / 2 / 2 ways

2 / 2 / 2 ways

Distance from spindle end to table

130~590mm
(5-1/8"~23-3/16")

130~640mm
(5-1/8"~25-3/16")

Distance from spindle center to
column

470mm
(18-1/2")

535mm
(21")

SPINDLE

Spindle nose taper

BT40
(or CAT40 / DIN40, opt.)

Spindle speeds

8000 r.p.m.
(or 10000~24000 r.p.m., opt.)

belt

belt

Cutting feed rate (X, Y, Z axes)

1~10000 mm/min. (max.)

Rapid traverse (X, Y axes)

24 m/min. (max.)

Rapid traverse (Z axis)

16 m/min. (max.)

ATC

Tool storage capacity

12 pcs (carrousel)
(or 20 pcs, (carrousel / arm), opt.)

16 pcs (carrousel)
(or 20pcs(carrousel)/
24 pcs (arm), opt.)

Max. tool weight

6 kgs (13.23 lbs)

Max. tool size (dia. x length)

100mmx300mm (3-15/16"x11-13/16")

Tool selection

Random

Tool shank

BT-40

Pull stud bolt

MAS-P40T-1

MOTOR

3.7／5.5KW

5.5／7.5KW

X, Y, Z axes motor (AC servo)

1.5 KW

2 KW

Coolant pump motor

3/4HP

DIMENSION

Machine size

2000x2305x2460mm
(78-3/4"x90-3/4"x96-7/8")

2160x2435x2550mm
(85"x95-7/8"x100-3/8")

Machine weight

2800 kgs (6173 lbs)

3800 kgs (8377 lbs)
